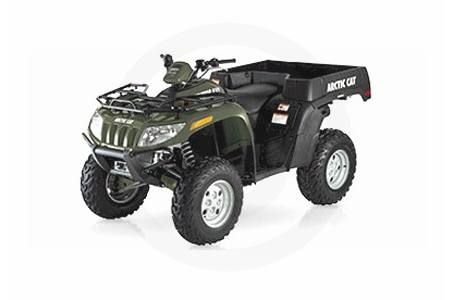

2009 Arctic Cat TBX 650
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Marsh Green
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    650 H1 EFI Engine
    • Time-tested 641cc liquid-cooled EFI features a single overhead cam and a single cylinder. The "H" stands for hemispherical combustion chamber, which delivers more efficient combustion resulting in better perfromance. Electronic Fuel Injection ensures easy starts and consistent performance in various climates or altitudes.
    Duramatic Automatic Transmission
    • Durable, efficiant automatic CVT is easy to operate, adds dynamic engine braking and delivers maximum horsepower and torque to the driveshaft. Also features a Hi/Low shift range and a long-life, maintenance-free belt.
    Electric 2WD/4WD And Front Differential Lock
    • When the going gets tough, electric shift allows the rider to shift from 2-wheel drive to 4-wheel drive on the fly with just a push of a button. For maximum traction, activate the front differential lock.
    TBX Rear Dump Box
    • Bring what you need where you want to go with the TBX 650's rear dump box. With it's industry-leading capacity, you can easily haul up to 300 lbs. without a second thought.
    Specifications
    • Displacement (cc): 641
    • Engine Type: SOHC, 4-Stroke, 4-Valve
    • Bore & Stroke (mm): 98 x 85
    • Cooling System: Liquid w/Fan
    • Transmission: Automatic CVT w/EBS, Hi/Lo Range & Reverse
    • Drive System: 2/4 WD + Electric Diff Lock
    • Overall Width (in./cm): 47.5/121
    • Overall Height (in./cm): 48/121.92
    • Overall Length (in./cm): 98.6/250.44
    • Wheelbase (in./cm): 58/147.3
    • Suspension Travel—Front (in./cm): 10/25.4
    • Suspension Travel—Rear (in./cm): 10/25.4
    • Ground Clearance (in./cm): 11/27.9
    • Suspension Type—Front: Double A-Arm
    • Suspension Type—Rear: Double A-Arm
    • Front Brakes: Hydraulic Disc
    • Rear Service Brake: Hydraulic Disc
    • Tires—Front: 25x8-12
    • Tires—Rear: 25x10-12
    • Max Fuel Capacity (gal./liters): 5.5/20.8
    • Rack Capacity—Front (lbs./kg): 100/45.4
    • Rack/Box/Flatbed Capacity—Rear (lbs./kg): 300/136
    • Towing Capacity (lbs./kg): 1050/477
    • Alternator Capacity (amps): 25
    • Speedometer: Digital
    • Odometer: Digital
    • Dry Weight (lbs./kg): 719/326.13
    • Minimum Operator Age: 16
    • Available Colors: Marsh Green

    Specifications

    Engine
    Engine Type SOHC, 4-Stroke, 4-Valve
    Displacement 641 cc
    Bore x Stroke 98 x 85 mm
    Cylinders Single
    Engine Cooling Liquid w/Fan
    Fuel System Electronic Fuel Injection
    Alternator Alternator Capacity: 25 Amps
    Chassis
    Front Suspension Double A-Arm
    Front Travel 10 in. (25.4 cm)
    Front Brake Type Hydraulic Disc
    Front Tires 25x8-12
    Rear Suspension Double A-Arm
    Rear Travel 10 in. (25.4 cm)
    Rear Brake Type Hydraulic Disc
    Rear Tires 25x10-12
    Dimensions/Capacities
    Dry Weight 719 lbs. (326.13 kg)
    Front Rack Capacity 100 lbs. (45.4 kg)
    Rear Rack Capacity Rack/Box/Flatbed Capacity: 300 lbs. (136 kg)
    Towing Capacity 1050 lbs. (477 kg)
    Fuel Capacity 5.5 gal (20.8 l)
    Ground Clearance 11 in. (27.9 cm)
    Machine Dimensions (LxWxH) 98.6 x 47.5 x 48 in. (250.44 x 121 x 121.92 cm)
    Wheelbase 58 in. (147.3 cm)
    Drive Train
    Drive Train 2/4 WD + Electric Diff Lock
    Transmission Automatic CVT w/EBS, Hi/Lo Range & Reverse
    General
    Speedometer Digital
    Odometer Digital
    Colors Marsh Green

    Compare Models

    		 Print








    Year 2009
    Manufacturer Arctic Cat
    Model TBX 650
    Style Utility
    Chassis
    Front Suspension Double A-Arm
    Front Travel 10 in. (25.4 cm)
    Front Brake Type Hydraulic Disc
    Front Tires 25x8-12
    Rear Suspension Double A-Arm
    Rear Travel 10 in. (25.4 cm)
    Rear Brake Type Hydraulic Disc
    Rear Tires 25x10-12
    Frame
    Dimensions/Capacities
    Dry Weight 719 lbs. (326.13 kg)
    Front Rack Capacity 100 lbs. (45.4 kg)
    Rear Rack Capacity Rack/Box/Flatbed Capacity: 300 lbs. (136 kg)
    Towing Capacity 1050 lbs. (477 kg)
    Fuel Capacity 5.5 gal (20.8 l)
    Ground Clearance 11 in. (27.9 cm)
    Machine Dimensions (LxWxH) 98.6 x 47.5 x 48 in. (250.44 x 121 x 121.92 cm)
    Wheelbase 58 in. (147.3 cm)
    Drive Train
    Drive Train 2/4 WD + Electric Diff Lock
    Final Drive
    Transmission Automatic CVT w/EBS, Hi/Lo Range & Reverse
    Engine
    Engine Type SOHC, 4-Stroke, 4-Valve
    Displacement 641 cc
    Bore x Stroke 98 x 85 mm
    Cylinders Single
    Engine Cooling Liquid w/Fan
    Fuel System Electronic Fuel Injection
    Starting System
    Alternator Alternator Capacity: 25 Amps
    General
    Speedometer Digital
    Tachometer
    Odometer Digital
    Lighting
    Colors Marsh Green
    Warranty
